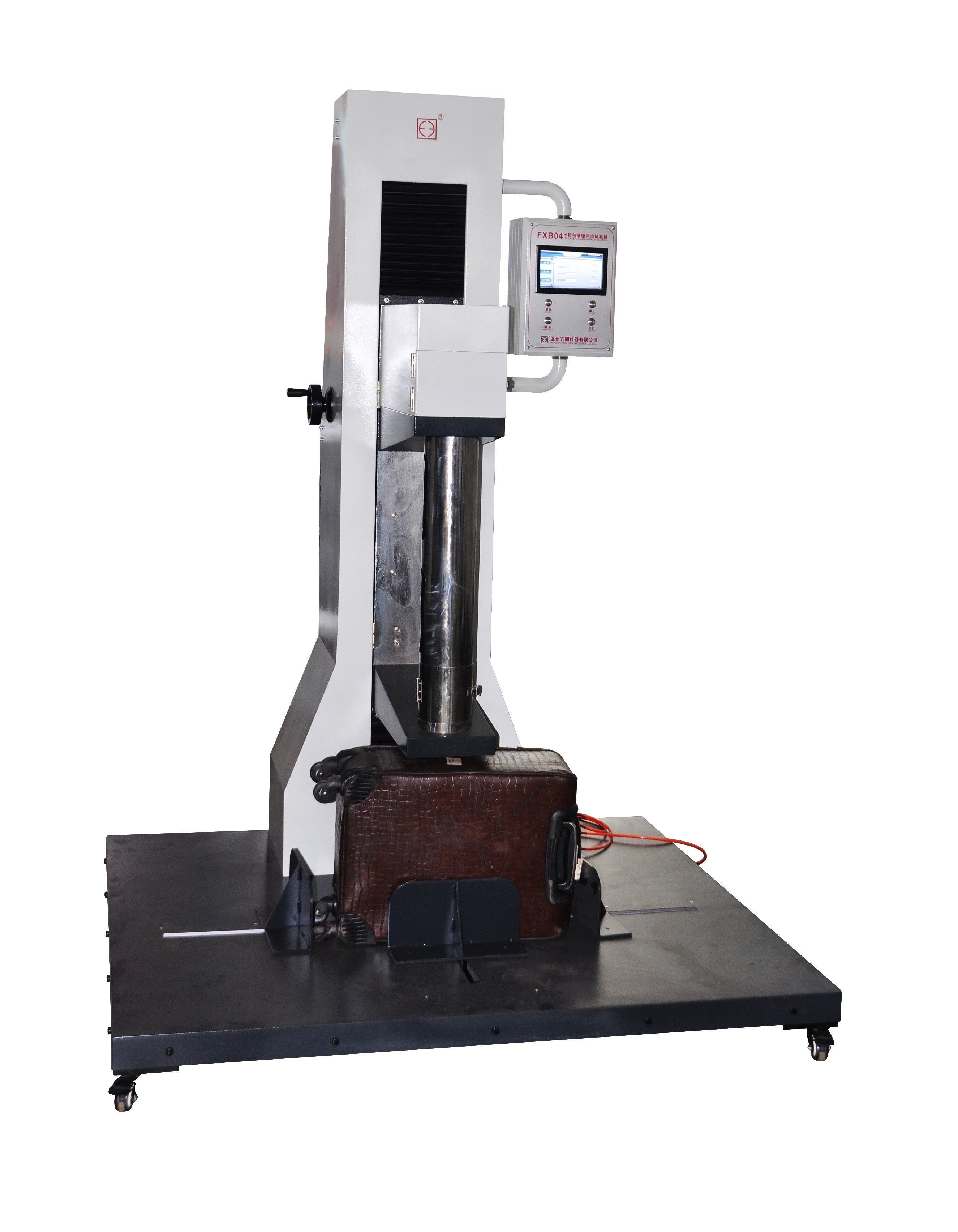

Topic: The quality inspection of plastic bags that are damaged after collision, collision and impact is closely related to people's life.  However, accidents such as knocking, bumping and bumping will inevitably occur during the use of the luggage. If the luggage is damaged due to the quality problem of the luggage, it will bring great inconvenience and trouble to people's life.  FXB041 luggage drop hammer impact testing machine is specially used for testing the impact resistance of luggage and conforms to QB/T2918 Luggage Drop Hammer Impact Test Method and other standard requirements.  It is suitable for testing the impact resistance of molded cases of various types and specifications of plastic cases.  The impact head with a specified weight is adjusted to a specified height to allow it to fall freely and strike the sample. According to the damage degree, the impact resistance of the luggage is tested.

    Technical indicators:

    1. Height: 1200mm (height from drop hammer to test box surface: 700mm)

    2. Falling ball control method: DC electromagnetic control

    3. Weight of impact head: 1,000 g, 2,000 g, 3,000 g, 4,000 g, 5,000 g each

    4. Impact head size: cylindrical diameter 100±2mm, bottom radius 50 mm.

    5. Operating power supply: AC220V, 50Hz

    6. Overall dimensions: length 1200, width 1200, height 2100mm

    7. Weight: about 390Kg
