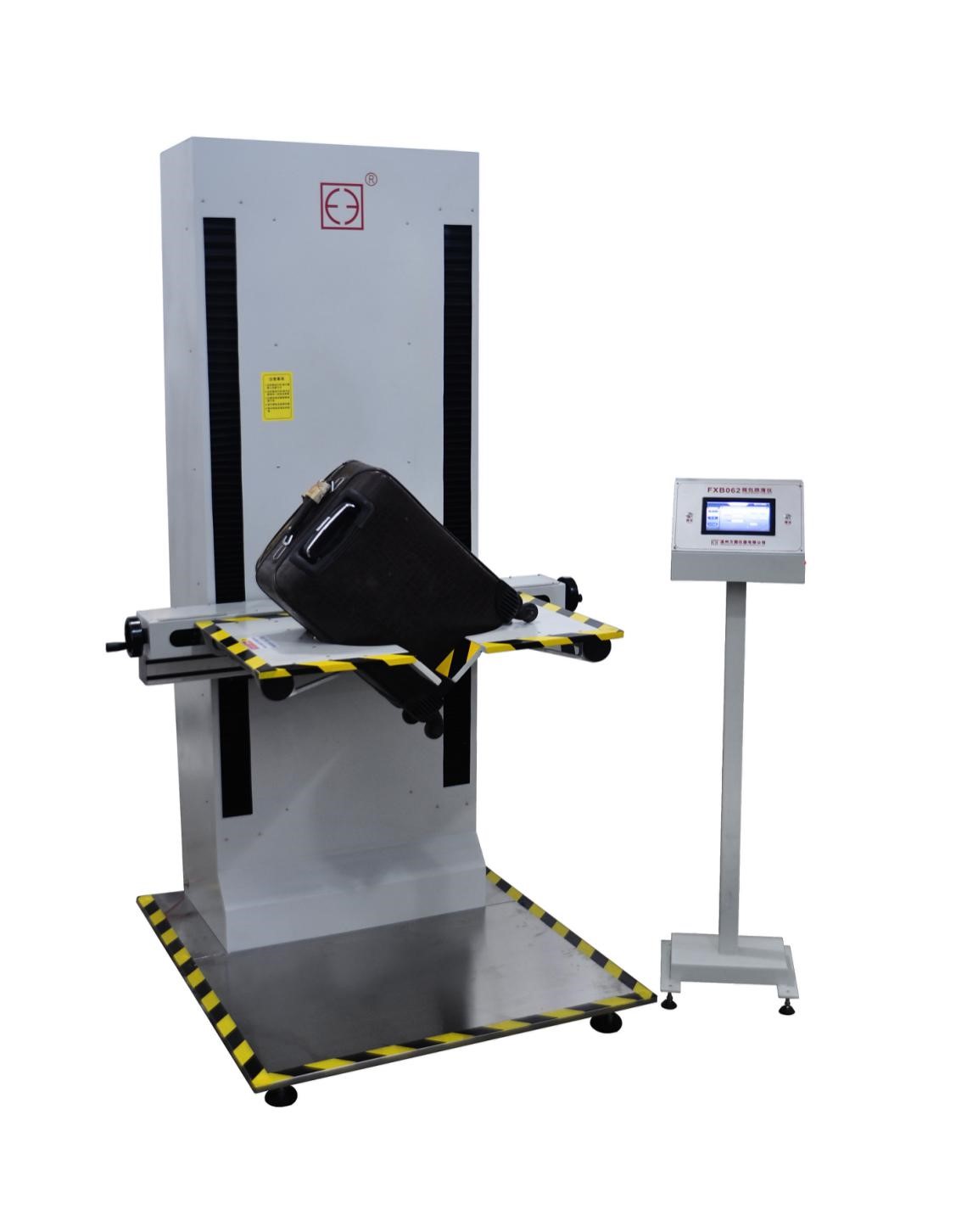

As an essential carrier for people to travel, luggage is often damaged to different degrees by falling, falling, touching and bumping during use and handling. Damage at different parts will affect the use of luggage.  The luggage falling instrument is a testing method according to the standard GB/T29212007: the luggage with a specified weight is placed at a specified height and then allowed to fall naturally, causing the luggage to generate shock and vibration. The intact degree and the strength of the overall structure of the box body, the box opening, the fixing parts, the connecting parts, the pull rods, the running wheels, the wheel shafts, the wheel frames, the locks and other parts of the luggage are inspected.  By placing the suitcase on a release platform 900mm above the ground, the six sides, eight corners and twelve sides of the suitcase were dropped once each to observe the apparent quality.  FXB062 Luggage Dropping Instrument Purpose: Used to test the damage of luggage after falling and evaluate the impact strength of luggage during transportation.  The drop simulation test of edges, surfaces and corners can be realized.Applicable standards: QB / t29212007, etc.

    Instrument characteristics:

    1. Large - screen color touch screen display, user-friendly interface design and easy operation.

    2. The panel is made of special aluminum and has metal buttons, which are sensitive to operation and not easy to damage.

    3. The core control components are Italy's 32 - bit multi-functional motherboard.

    4. The core transmission mechanism adopts imported precision guide rails.

    5. The instrument includes Chinese and English interfaces to facilitate the inspection of foreign customers.

    6. The surface of the instrument is sprayed by a relatively good electrostatic spraying process.

    7. The datum plane of the instrument is specially processed to ensure the accuracy of the datum plane and improve the accuracy of the instrument.
