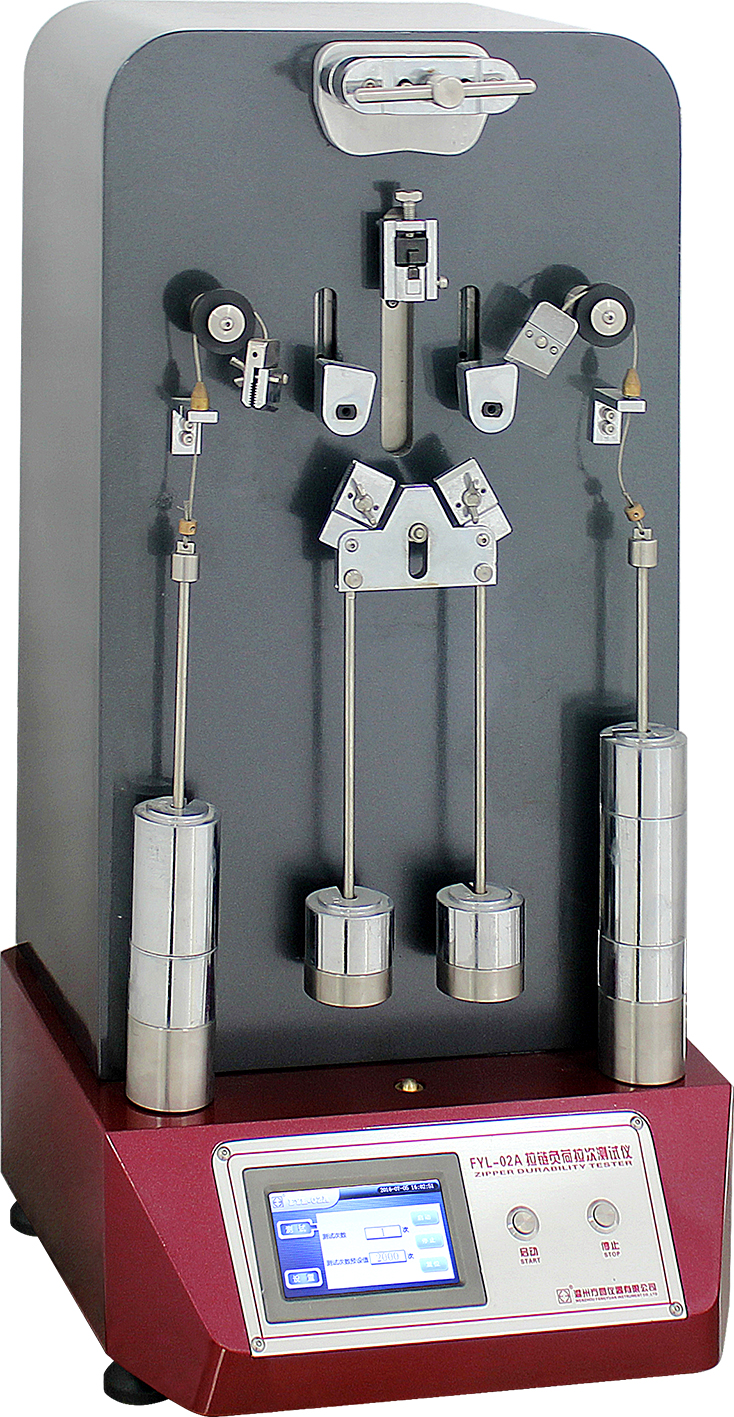

Test the service life of metal, injection molding and nylon zipper under specified load and pull times.

STANDARDS:

ASTM D2061、AS2332、BS3084、QB/T2171、QB/T2172、QB/T2173

FEATURES:

1, Large color touch screen display, easy menu mode of operation in English and Chinese.

2, Powder-coated shell, special aluminum panels, metal switch buttons, smart and neat.

3, Adjusts the zipper stroke according to different standards.

4, Special made zipper-head fixture, with built-in opening structure, easy for using.

5, The positioning blocks ensure the lateral pull of the clamps, facilitating the positioning of the specimens

6, A set of 14 pieces of weights made of high quality 304 stainless steel  never rust.

7,  Self reseached & developed FY-Meas&Ctrl system includes:
⑴hardware: multifunctional circuit board;
⑵software: multifunctional measuring & controling software FY-Meas&Ctrl (Certificate No.4762843)

TECH. PARAMETERS:

1. Range of reciprocating: 1~999999 times

2. Reciprocating speed: 30 round/min

3. Reciprocating stroke: 75mm or 90mm

4. Opening and closing angle: open: 30°; close: 60°

5. Range of specification : 2.5mm ~ 12mm

6. Fixture size:

A. Width: transversal 25mm;  longitudinal 10mm

B. Tooth angle of clamping surface: 60°

C. Pitch: 1.5 mm

D. Tooth top width: 0.2mm

7. Maximum loading force: 30N

8. Power supply: AC220V, 50HZ, 80W

9, Dimensions: 400×450×750mm (L×W×H)

10, Weight: 50Kg
