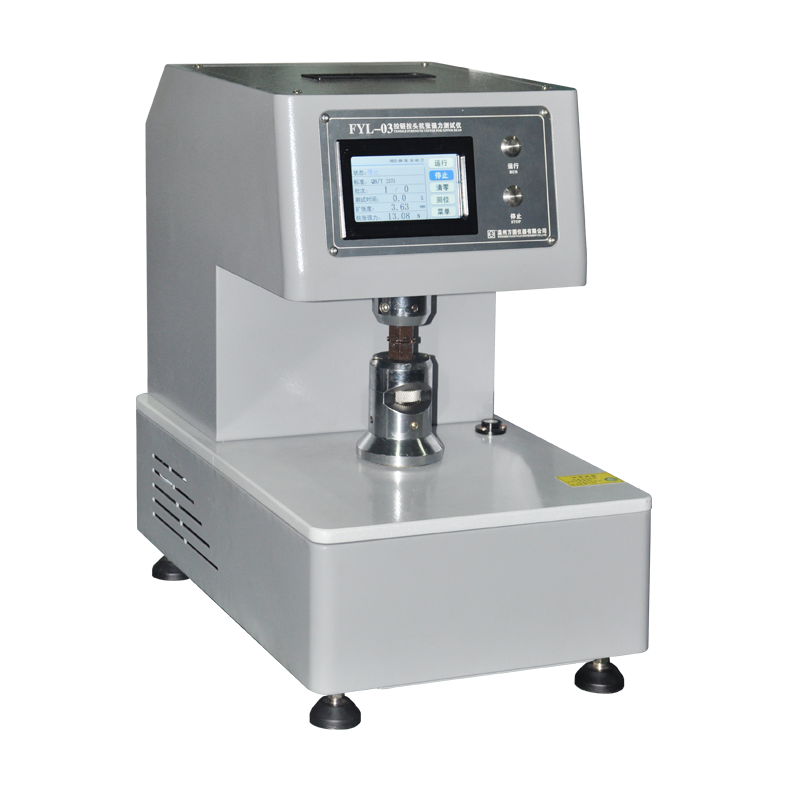

Measures deflection resistance of zipper slider planes made of metal/derlin/nylon etc, under certain opening/spreading force.

STANDARDS:

QB/T2171, QB/T2172, QB/T2173, ASTM D2061-2007

FEATURES:

1, Stoving varnish shell, special aluminum panel, metal switch buttons, smart and neat.

2, Color touch screen display, easy menu mode of operation in English and Chinese.

3, Force value and displacement measurement is composed of force value sensor and microcomputer force measurement system.

4, There are six stations for choosing according to different zipper sliders.

5, The selected station can be turned to the front through the wrench for easy mounting and observing.

6, Automatic switching of loading speed in accordance with the selected standard.

7, Open setting of user-defined zipper models for easier tests of unconventional zippers.

8, Self researched & developed FY-Meas&Ctrl system includes:
⑴hardware: multifunctional circuit board.
⑵software: multifunctional measuring & controlling software FY-Meas&Ctrl
