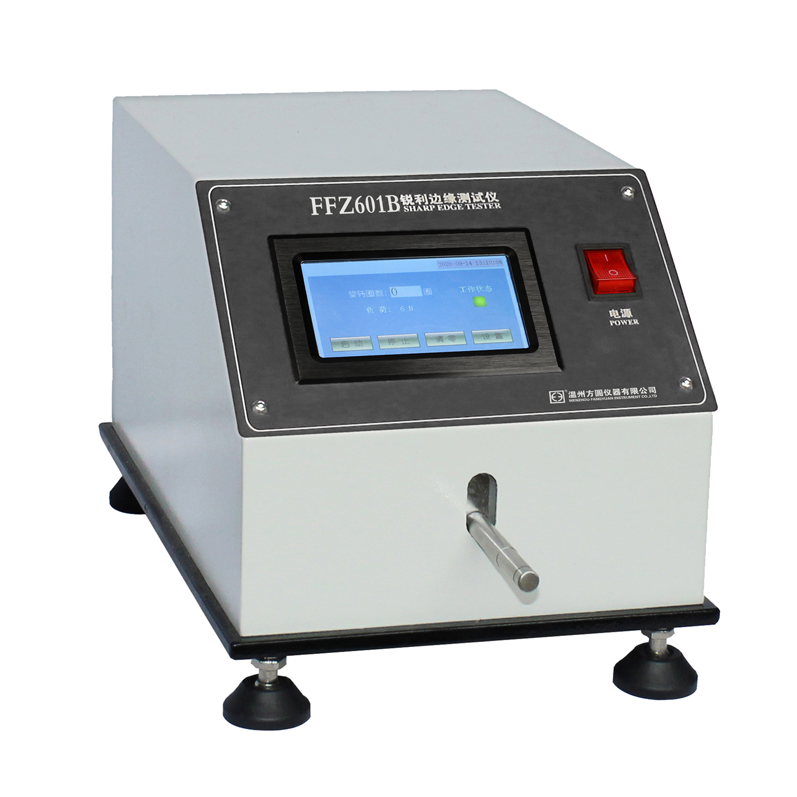

To determine the sharp edges of accessories and children's toys on textile products.

STANDARDS:

ASTM F963、EN71-1、GB6675、GB/T31702、GB/T31701,

CHARACTERISTICS:

1, Fine quality materials and well selected components, robust and durable.

2, Color touch screen display, easy menu mode of operation in English and Chinese.

3, The core control adopts 32-bit multifunctional mainboard of STMicroelectronics.

4, Precision drive and motor, shorter response time, no speed overshooting, no speed imbalance.

5, Standard modular design, convenient maintenance and upgrade.

6, Desktop design, practical and smart.

TECH. PARAMETERS:

1. Mandrel diameter: 9.53±0.12mm (the correct Angle between the test instrument and the test side end is 90°±5°)

2. Surface roughness Ra of mandrel is less than 0.40μm

3. The mandrel surface hardness is greater than 40HRC

4. Mandrel rotation speed range: 23mm±0.4mm/S (46r/min)

5. Mandrel rotation angle: 360° (1 ~ 10 turns settable)

6. Weight force: 6N (±0.1N);

7. Timing range: 0 ~ 99999.9s, resolution 0.1s

8. Power: 220V± 10%

9. Mass: about 5kg
