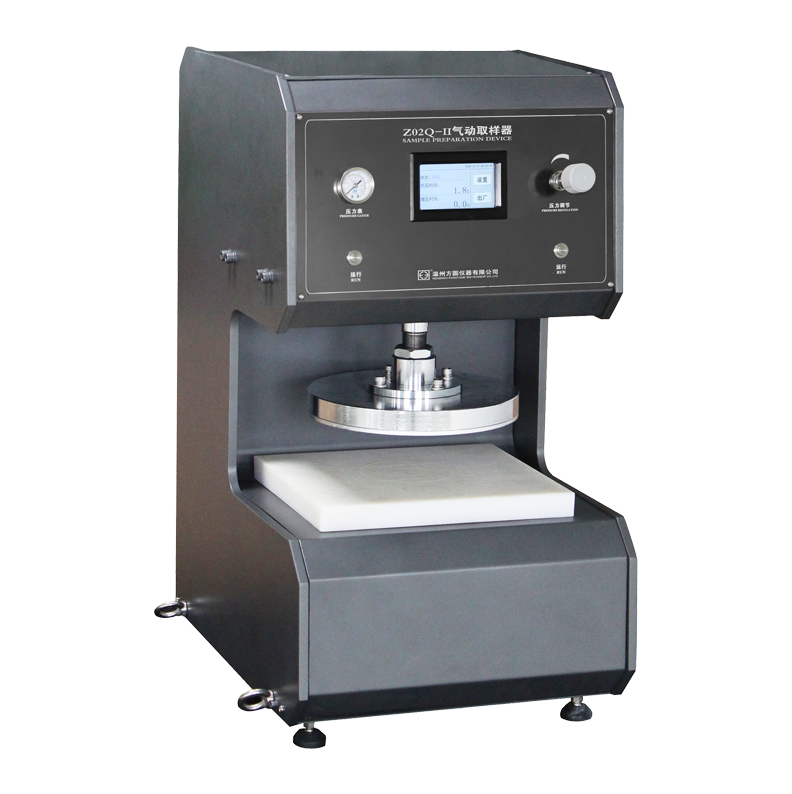

Pneumatic sample cutter with customizable blade cuts standard specimens of fabrics, nonwoven, leather etc. for textile tests.
Manual sample cutter Z01B is available.
Equipped with self reseached & developed FY-Meas&Ctrl system:
⑴hardware: multifunctional circuit board.
⑵software: multifunctional measuring & controling software FY-Meas&Ctrl (Certificate No.4762843)
TECH. PARAMETERS:
1. Travel: ≤60mm
2. Maximum output pressure: ≤5 tons
3. Working pressure: 0.4 ~ 0.8Mpa
4. Air pressure adjustment accuracy: 0.005Mpa
5. Pressure holding time range: 0 ~ 999.9s, resolution 0.1s
6. Matching knife model:
|
Model Name |
Number |
Sampling Size |
Application |
|
Rag model |
2 |
5×5mm |
For formaldehyde and PH testing 100 samples can be taken at one time |
|
Gram model |
1 |
diameter 112.8mm |
For calculating the square weight of the fabric |
|
Wear-resistant sampling model (1) |
1 |
diameter 38mm |
For Martindale wear and pilling tests |
|
Wear-resistant sampling model (2) |
1 |
diameter 140mm |
For Martindale wear and pilling tests |
7. Sample time: <1min
8. Working table size: 400mm×280mm
9. Working board size: 280mm × 220mm
10. Power: AC220V 50Hz 50w
11. Dimensions: 550×450×550mm (L×W×H)
12. Mass: 140Kg
