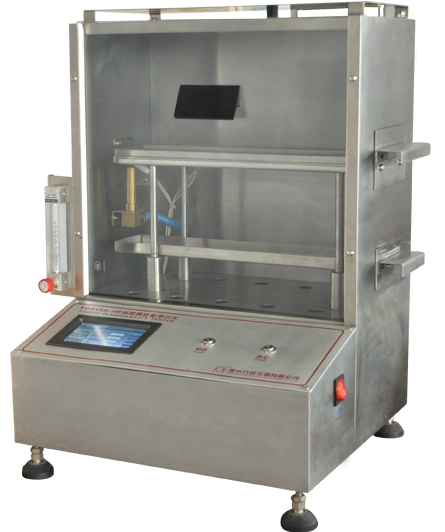

YG815E-II Fabric Flame Retardant Performance Tester ( Automotive Interior Trim )

INTRODUCTION

APPLICATION:

Used to measure the horizontal combustion performance of interior materials of various automobiles, expressed by flame spread rate.

STANDARDS:

GB8410-2006《汽车内饰材料的燃烧特性》

GB8410-2006 Combustion Characteristics of Automotive interior materials

QB/T2729-2005《皮革物理和机械试验 水平燃烧性能的测定》等标准

QB/T2729-2005 Determination of Horizontal Combustion Performance in Leather Physical and Mechanical Tests and other standards

Instrument characteristics:

1. Imported brushed stainless steel is manufactured.

2. Rotor flowmeter is used to adjust the flame height.

3. The front of the experiment box is a heat-resistant glass observation door.

4. Large screen color touch screen display, user-friendly interface design and easy operation.

5. The panel is made of special aluminum and has metal keys, which are sensitive to operation and not easy to damage.

6. The core control components are Italy's 32 - bit multi-functional motherboard.

7. The instrument includes Chinese and English interfaces to facilitate the inspection of foreign customers.

Technical parameters:

1. Time control range: 0 ~ 99999.9 s

2. Time control error: ±0.1s

3. Flame height: 38mm

4. Ignition time: 0S ~ 99999.9S can be set;  Spread timing;  0~99999.9s

5. Sample holder: one set

6. Height from ignition head to lower part of sample: 19mm

7. Overall dimensions 430×350×550mm(L×W×H)
