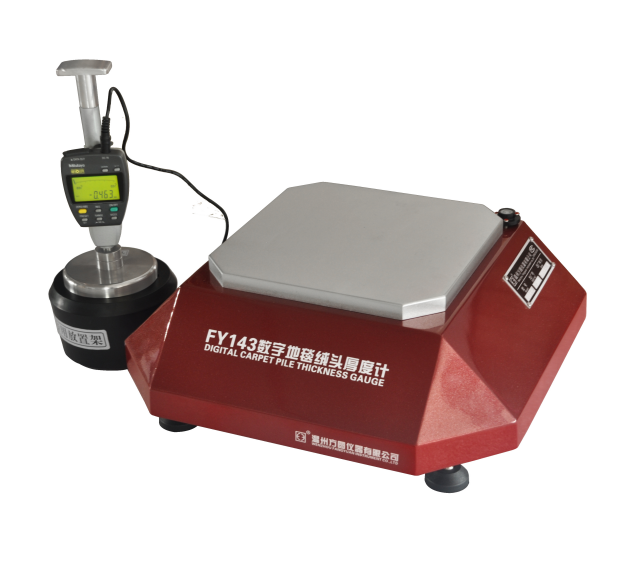

APPLICATION:

To directly measure the thickness of carpet pile.

STANDARDS: ISO 10834: 1992, etc.

Instrument characteristics:

1. The overall appearance of the machine is elegant and the surface is painted with metal paint.

2. Imported special aluminum profiles are selected for the worktop;

3. Rapid test can be realized;

4. Reduce the probability of operational errors;

5. High accuracy and reproducibility of measurement results;

6. The sample can be tested at any horizontal position.

7. A simple bracket can be used to directly measure the blanket thickness of small samples.

8. The instrument is small in size and easy to carry.

9. By connecting with computer through RS232C interface, online measurement and statistical analysis of data can be realized.  ( Optional: Cable and software to be ordered separately ).

Technical parameters:

1. Test range: 0 ~ 50 mm;

2. Resolution: 0.001 mm;

3. Measurement method: handheld;

4. Presser foot area: 700mm2;

5. Test pressure: 2KPa

6. Sample size: 120mm× 120mm

7. Power supply: AC 220V 50Hz;

8. Overall dimensions: 400 mm(L)× 400 mm(W)× 120mm(H)；

9. Net weight of instrument: 10kg
