APPLICATION:

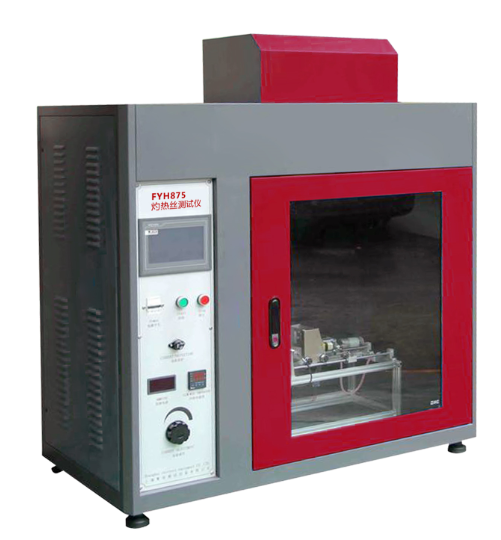

A testing device that uses simulation technology to evaluate the thermal hazard caused by heat sources such as hot elements or overload resistors in a short period of time. It is suitable for electrical equipment, its components and parts, solid electrical insulation materials or other solid combustible materials.
STANDARDS: GB / T 5169.10 ~ 13, IEC60695-2, etc.
Technical parameters:
1. Current regulation range: 120～150A current
2. Heating temperature of glow wire with electricity: 0 ℃ ~ 1050 ℃ ( digital display )
3. U - shaped glow wire: 4 mm 0.04 mm, Ni/Cr ( composition ratio 80 / 20 )
4. Thermocouple: K - type ( 1mm ) thermocouple to detect temperature change
5. Test pressure of test article on glow wire: 1.0N±0.1N
6. Depth of glow wire: 7mm±0.5mm.
