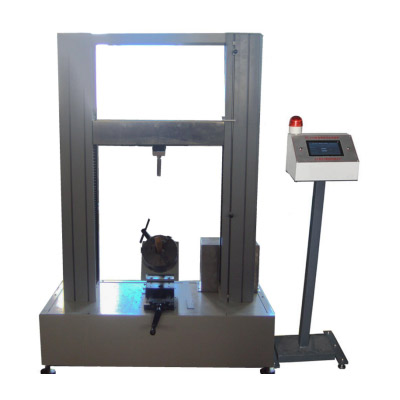

FTC156 Riser Strength Testing Machine



To inspect the deformation of the handlebar ( bicycle handlebar ) under certain conditions after applying the specified pressure.


GB 14747,ANSI Z315

Instrument characteristics:

1. Stable and reasonable operation, low noise, no beating and vibration phenomenon.

2. The core transmission mechanism adopts imported precision guide rails.

3. Convenient and quick installation of fixture.

4. The interface of the instrument is clear and simple, convenient to operate.

5. The surface of the instrument is treated by electrostatic spraying process.

6. Color touch screen display control.

7. The multi-functional motherboard is composed of 32 - bit single-chip computer of Italian company.

Technical parameters:

1. Force value: 0 ~ 1000 N, set arbitrarily

2. Force value accuracy: ±1%

3. When the sample is damaged, automatic alarm stop

4. Special angle scale facilitates the realization of an angle of 45 degrees.

5. Display: force value curve display

6. Special fence, ensure the safety of the operators

7. Weight: about 90kg

8. Power supply: AC220V, 50Hz

9. Overall dimension: 1060× 620× 1480 mm ( L× W× H )
