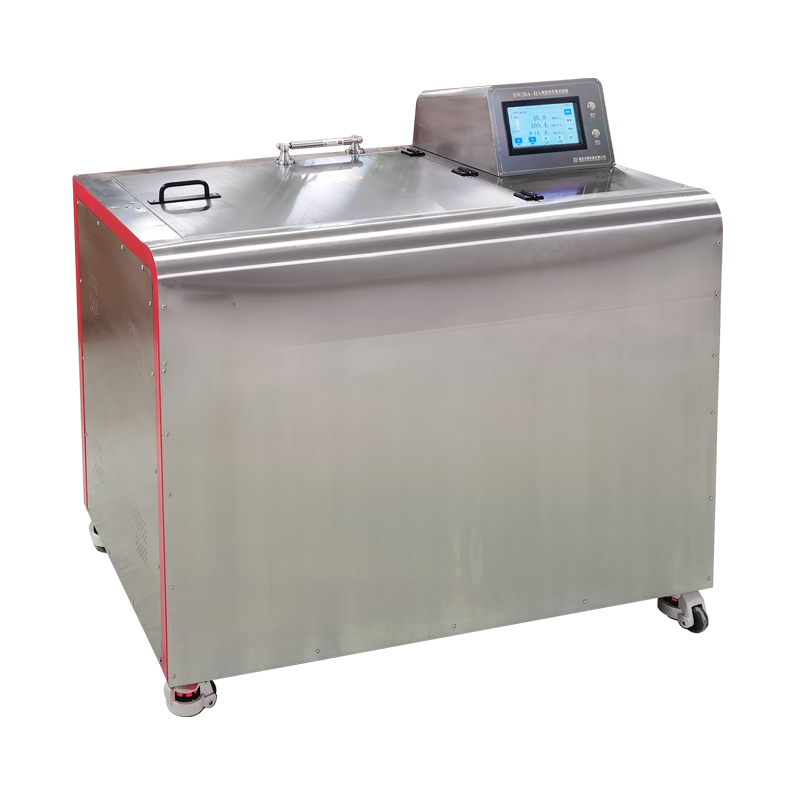

This rotary washing tester is for the determination of the color fastness to washing and dry-cleaning of various textiles such as cotton, wool, hemp, silk, chemical fiber and others. With 20 test cups.
STANDARDS:
ISO 105 C01,C02,C03,C04,C05、JIS L0844、BS1006、GB/T3921
ISO 105 C06、AATCC 61、GB/T12490
ISO 105 C10、GB/T3921
ISO 105 C08
ISO 105 D01、JIS L0860、GB/T5711
CHARACTERISTICS:
1, Stainless steel 304 of full body, durable and neat.
2, Large color touch screen display, easy menu mode of operation in English and Chinese.
3, The core control adopts 32-bit multifunctional mainboard of STMicroelectronics.
4, Precision reducer, synchronous belt drive, running smooth and steady, with lower noise.
5, Solid-state relay controls electric heating, no mechanical contacts, stable temperature, no noise, long service life.
6, Built-in water level sensor for anti-dry protection, instant detection of water level.
7, PID temperature control function effectively prevents overshoot of temperature.
8, Safety switch to the door effectively prevents scald and injury.
9, Rotate-in-place loading for the test cups, superb airtightness.
10, Equipped with high quality castors, easy to move.
Tech. parameters:
1, Numbers of test cups: 20, each 550ml (￠75mm×125mm) ;
2. The distance between the center of the rotation shaft of the sample frame and the bottom of the test cup container: 45±10mm;
3. On-load rotation speed of the sample frame: 40±2r/min;
4, Water temperature heating time: room temperature ~ 60℃ : ≤12min; 61℃ ~ 95℃ : ≤24min;
5, Temperature control range: water temperature ~ 95℃; temperature display resolution: 0.1℃; temperature controller accuracy: ±1℃;
6, Time setting range: 1 ~ 99999.9min, timing error: ≤±1min;
7, with a water inlet;
8, Dimentions: 1110mm×750mm×1050mm (L×W×H);
9, Power supply: 220V, 8KW;
10, Weight: 150Kg;
