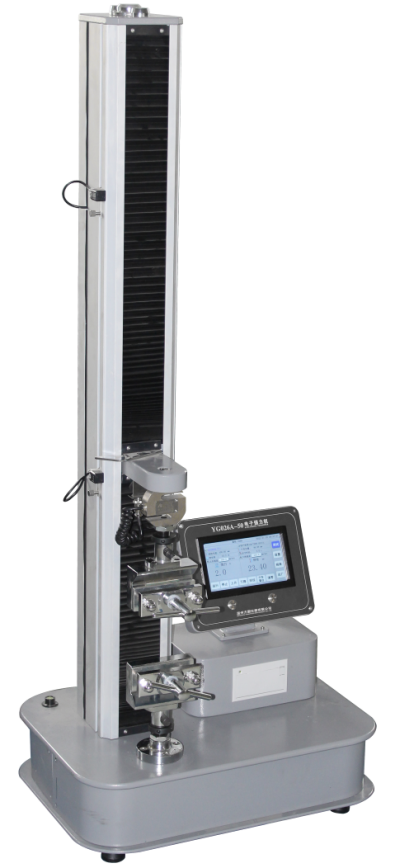

Manual Clamping, single-column textile tensile tester measures mechanical strength such as elongation, breaking, tearing, bursting, peeling, joint & seam, elasticity, creep strength of fabrics, yarns, printing and dyeing, clothing, zipper, leather, nonwoven, geomaterials and other industrial products.
STANDARDS:
ISO 13937-1、ASTM D1424、JIS L 1096-8.15、BS 4253、ASTM D5734、ISO 9034-4、ISO1974
CHARACTERISTICS:
1, Large color touch screen display, easy menu mode of operation in English and Chinese.
2, Precision drive and motor (vector control), shorter response time, no speed overshooting, no speed imbalance.
3, Ball screw and Precision guide rails for the core transmission, with longer service life but lower vibration and noise.
4, Encoder of South Korea for accurate positioning and elongation control.
5, The core control adopts 32-bit multifunctional mainboard of STMicroelectronics and 24-bit A/D transverter.
6, Manual or pneumatic fixture with replaceable clamps is optional.
7, Standard modular design, convenient maintenance and upgrade.
8, Built-in thermal printer.
9, FY-Meas&Ctrl system includes:
⑴hardware: multifunctional circuit board;
⑵software: multifunctional measuring & controling software FY-Meas&Ctrl (Certificate No.4762843).
TECH. PARAMETERS:
1. Measuring range and division value: 500N (50kg), 0.01N or 2500N (250kg), 0.1N;
2. Force value resolution: 1/60000;
3. Force sensor error: ≤± 0.05%f ·S;
4. Full load error: ≤±0.1% of any arbitrary point within 2% ~ 100% of full scale, grade: 1;
5. Speed range: 0.1 ~ 500mm/min;
6. Travel range: 600mm;
7. Displacement resolution: 0.01mm;
8. Minimum gauge length: 10mm;
9. Unit conversion: N, cN, Ib; Mm, in;
10. Data storage: ≥2000 groups;
11. Power: 220V,50HZ,600W;
12. Dimension: 540mm×420mm×1500mm (L×W×H);
13. Mass: about 80kg;
