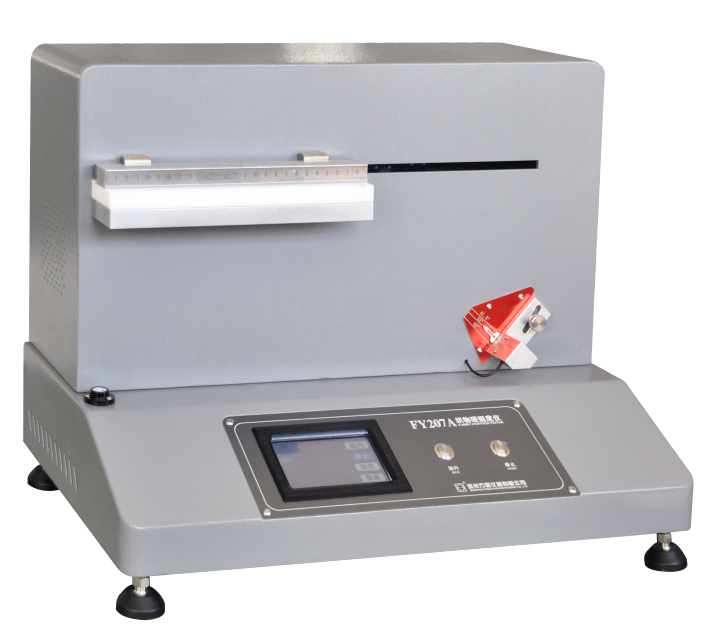

FY207A Fabric Stiffness Tester (incline)


By incline method, to measure the bending length, thus to determine the stiffness of fabrics, such as cotton, wool, silk, hemp, chemical fiber, knitted fabrics, non-woven fabrics, coated fabrics, also applicable for flexible materials such as paper, leather and film.



ISO 9073-7、ASTM D1388、GBT18318.1



1, Color touch screen display, easy menu mode of operation in English and Chinese.

2, Powder-coated shell, special aluminum panels, metal switch buttons, smart and neat.

3, Test angle: 41°, 43.5°, 45°, convenient positioning for different test standards.

4, Infrared measurement method, quick response, accurate data.

5, Fine-quality stepper motor control, test speed adjustable from 0.1mm/s ~ 10mm/s.

6, Ball screw and linear guide rail for the core transmission, smooth and steady, with longer service life but no noise.

7, Pressing specimen by the press plate's self-weight, in line with the standards, without causing deformation to the specimen.

8, In addition to the three existing standards, there is also a custom standard, of which all parameters are open, easy to customize the test.

9, Each sample direction  (longitude and latitude) allows maximum 99 groups data under each standard.

10, Self reseached & developed FY-Meas&Ctrl system includes:
⑴hardware: multifunctional circuit board;
⑵software: multifunctional measuring & controling software FY-Meas&Ctrl (Certificate No.4762843)



1. Test travel: 5 ~ 200mm, resolution: 0.01mm, accuracy: 0.1mm

2. Speed range: 0.1mm/s ~ 10mm/s

3. Measuring angle: 41.5°, 43°, 45°

4. Length unit: mm, cm, in. (switchable)

5. The number of tests: ≤99 times

6. Pressure plate specifications: Chinese standard 25×250mm, 250±10g

7. Platform size: 40×250mm

8. Dimensions: 600×300×450 (L×W×H) mm

9. Power: AC220V, 50Hz, 100W

10. Mass: 20Kg
