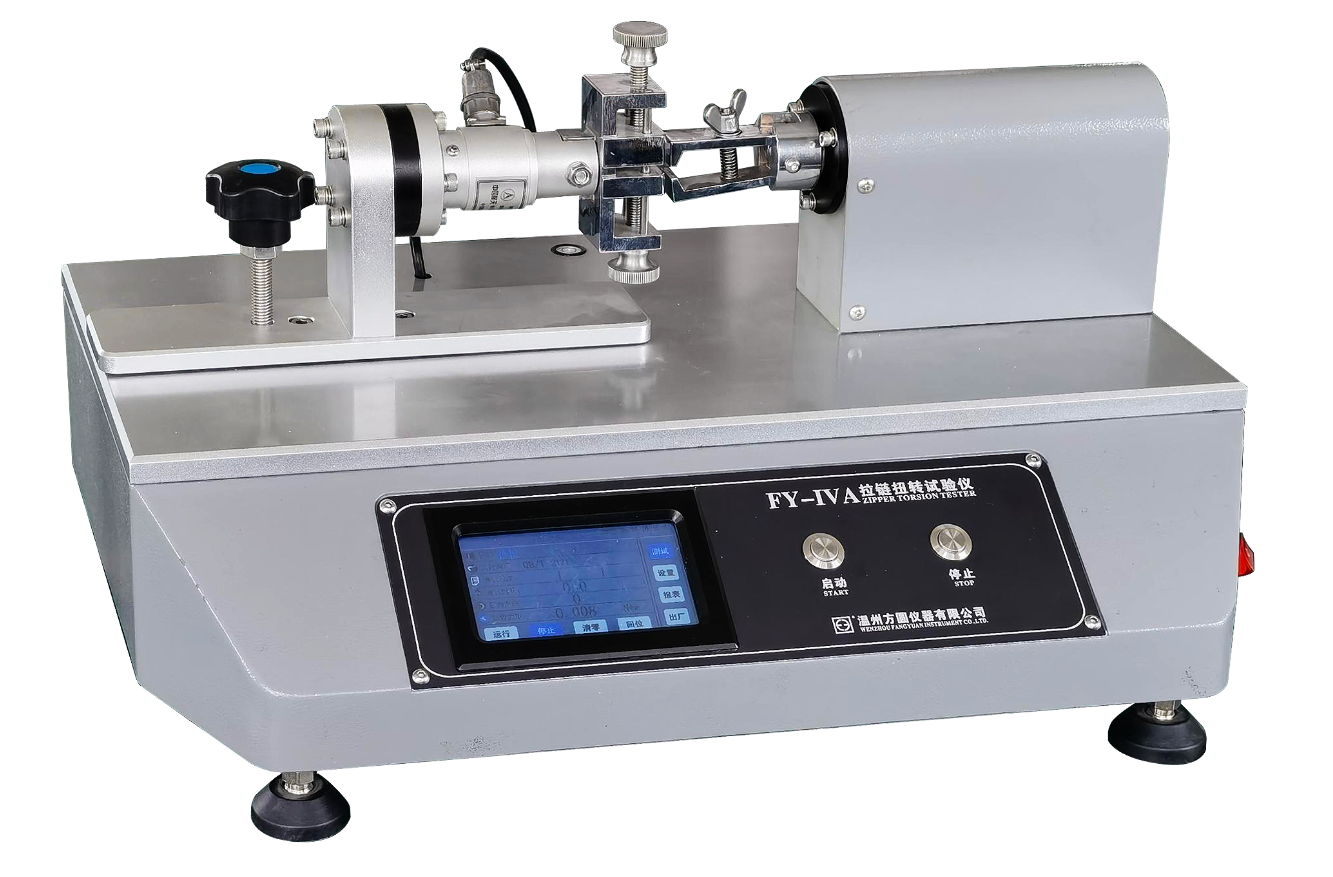

FY-IVA Zipper Torque Tester

INTRODUCTION

Tests resistance to twist strength of zipper sliders and pullers made of metal, injection molding and nylon.



STANDARDS:

QB/T2171、 QB/T2172、 QB/T2173、ASTM D2061-2007



FEATURES:

1, Powder-coated shell, special aluminum panel, metal switch buttons, smart and neat.

2, Color touch screen display, easy menu mode of operation in English and Chinese.

3, Horizontal test mode offsets measurement error due to zipper weight or clamping imbalance.

4, Composed of torque sensor and microcomputer force measuring system, with automatic torque tracking measurement and peak keeping.

5, High precision encoder for angle measurement.

6, Torsion can rotate at any angle.

7, Printer interface, computer interface, on-line communication line, on-line operation software.

8, Self researched & developed FY-Meas&Ctrl system includes:
⑴hardware: multifunctional circuit board.
⑵software: multifunctional measuring & controlling software, FY-Meas&Ctrl

TECH. PARAMETERS:

1, Torsion test range: 0 ~ ±2.000N·M
2. Torque unit: N·M, lbf·in (switchable)
3. Minimum division value: 0.001N.M
4. load accuracy: ≤±0.5%F·S
5. Torsion angle range: any angle
6. Power supply: AC220V, 50Hz, 80W
7. Dimensions: 350mm×500mm×550mm (L×W×H)
8. Weight: 25kg
