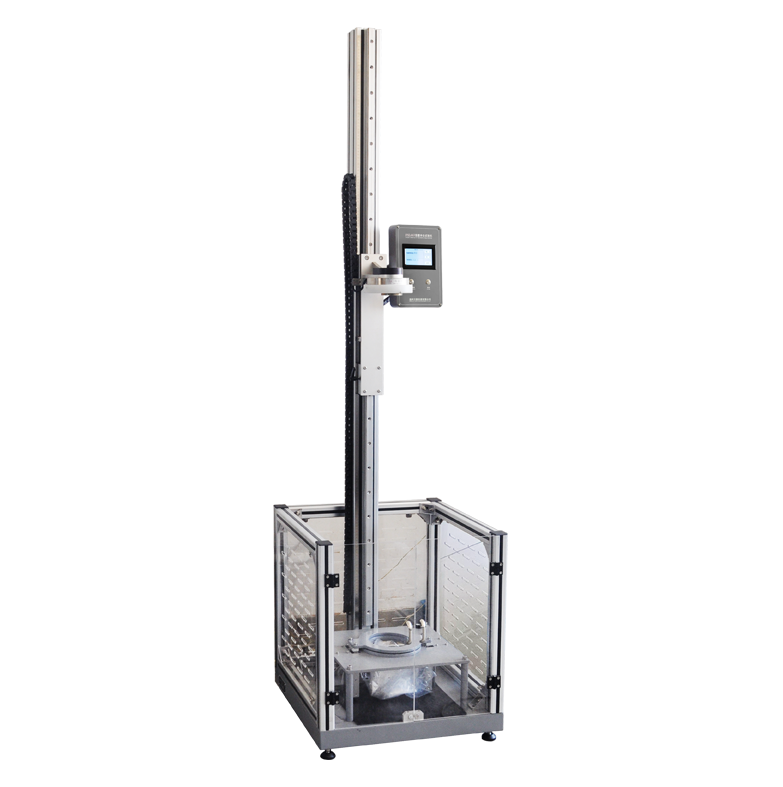

For testing impact resistance of plastic film and sheeting by the free-falling dart method, measures the mass and energy of impact from certain height, which caused damage to 50% of the samples.
Standards：
GB/T 9639.1-2008, ISO 7765-2
Features:
1, Desk-top design, running smooth and quiet;
2, Special aluminum panels, metal switch buttons, neat and durable;
3, Touch screen display, easy menu mode of operation in English and Chinese;
4, The core control adopts 32-bit multifunctional main-board of STMicroelectronics.
Tech. Parameters：
1, Suitable for plastic film and thin sheet thickness less than 1mm;
2. Test method:
Method A: The head diameter of the dart is (38±1) mm, the falling height is (0.66±0.01) m, and the impact damage mass is 0.05kg-2kg;
Method B: The head diameter of the dart is (50±1) mm, the falling height is (1.5±0.01) m, and the impact damage mass is 0.3kg-2kg;
3, Counterweight block: mass and quantity (mass deviation ±0.5%)
Method A Counterweight Block
|
gram |
piece |
|
5 |
2 |
|
15 |
8 |
|
30 |
8 |
|
80 |
8 |
Method B Counterweight Block
|
gram |
piece |
|
15 |
2 |
|
45 |
8 |
|
90 |
8 |
4, Falling height range:（0.6-1.55）m；
5, Fixture: 2 pieced of sample fixtures, up & down, ring shape, inner diameter(125±2)mm;
6, Pneumatic clamping;
7, Power supply: AC220V 50Hz
