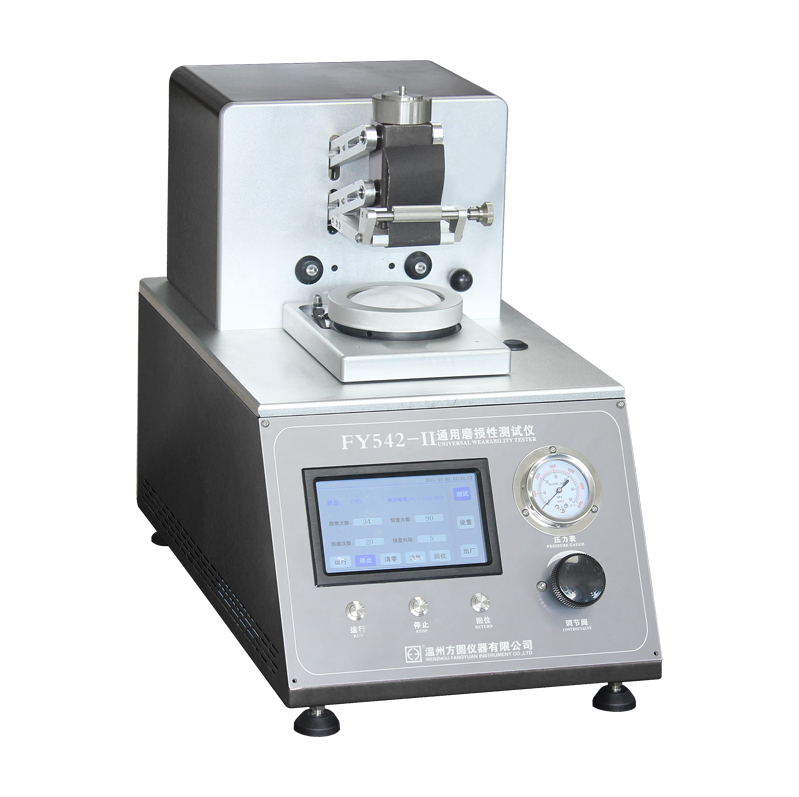

Universal wear tester for abrasion resistance is equipped with both flat and flexing grinding heads, suitable for all kinds of fabrics including apparel, shoes, upholstery, automotive and other industrial materials.
STANDARDS:
ASTM D3514、ASTM D3885、ASTM D3886、AATCC 119、FTMS 191、FTMS 5300、FTMS 5302、FLTM BN 112-01
CHARACTERISTICS:
1, Powder-coated shell, special aluminum panels, metal switch buttons, smart and neat.
2, Large color touch screen display, easy menu mode of operation in English and Chinese.
3, High quality core transmission with precision guide rail, smooth and steady, with longer service life but lower noise.
4, Equipped with an inflatable diaphragm and a flexing grinding head.
5, Built-in silent air pressure system.
TECH. PARAMETERS:
1. Inner diameter of clamping collar: 95mm
2. Speed: 125 double strokes/min
3. Range: 25mm
4. Vertical load: 454g
5. Air pressure for flat wear method: 28kPa
6. Dimensions: 330×500×460mm (length × width × height)
7. Mass: 45Kg
8. Power: 220V, 50HZ, 0.5KW
