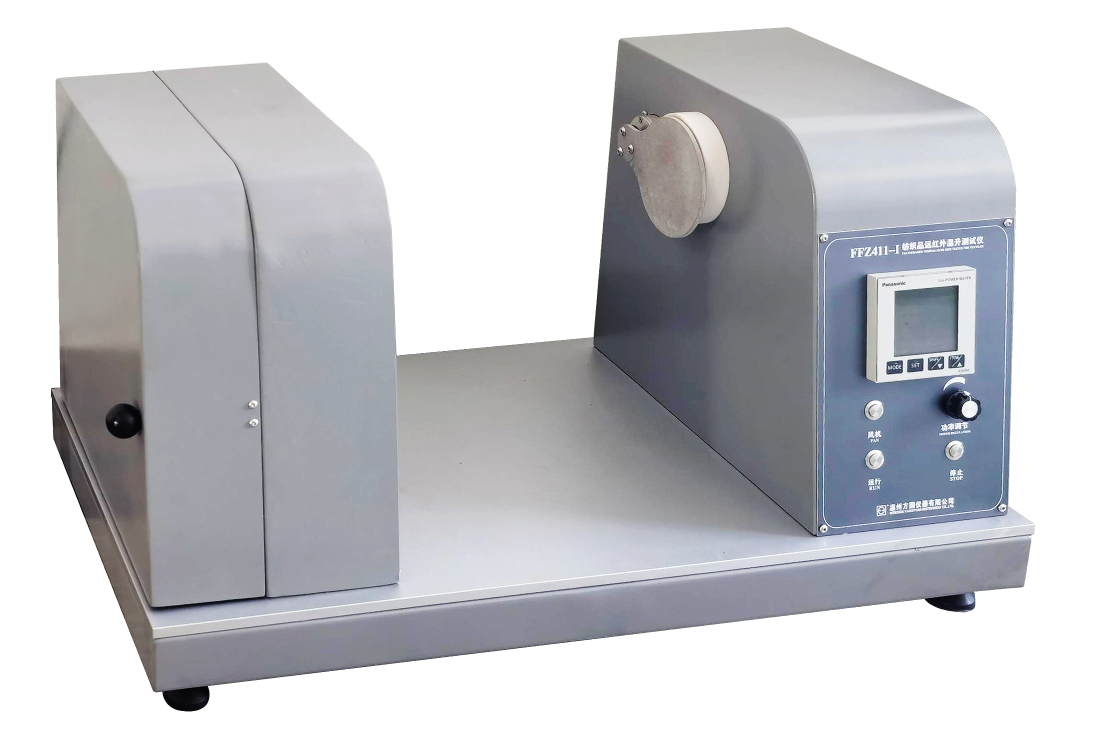

By measuring temperature rise, to determine the far infrared radiation properties of textiles, for all kinds of textile products, including fibers, yarns, fabrics, nonwovens.

STANDARDS:

GB/T30127 4.2

CHARACTERISTIS:

1, Powder-coated shell, special aluminum panel, metal switch buttons, smart and neat.
2, Large color touch screen display, easy menu mode of operation in English and Chinese.

3, Unique optical modulation technology, ensures that the measurement is not affected by the radiation of the specimen surface and the environmental.

4, Self reseached & developed FY-Meas&Ctrl system includes:
⑴hardware: multifunctional circuit board.
⑵software: multifunctional measuring & controling software FY-Meas&Ctrl (Certificate No.4762843)

TECH. PARAMETERS:

1. Specimen holder:

The distance from the surface of the specimen to the radiation source is 500mm (adjustable).

Yarn: square metal frame with side length not less than 60mm

Fiber: φ60mm, open cylindrical metal container with height of 30mm

Fabric: diameter is not smaller than φ60mm

2. Radiation source:

Dominant wavelength: 5μm ~ 14μm, radiation power 150W

Diameter of the opening: φ60 ~ φ80mm

4, temperature range and accuracy: 13 ~ 50℃, erorr≦0.1℃, response time≦1s

5, Dimensions: 850×460×460mm (L×W×H)

6, Power: 220V, 50Hz, 200W

7, Mass: 40Kg
